Check standard plumbing pipe sizes chart in mm & inch for residential & commercial use. Includes PDF, Excel download & pipe sizing guide.

👉 Standard plumbing pipe sizes used in residential buildings:

• 15 mm (½”) → Basin & wash
• 20 mm (¾”) → Kitchen & bathroom
• 25 mm (1”) → Main water supply
• 32–50 mm → Distribution & drainage

Standard Plumbing Pipe Sizes Chart

Pipe Size (mm)	Inch	Application
15 mm	½”	Wash basin
20 mm	¾”	Kitchen / shower
25 mm	1”	Main water supply
32 mm	1¼”	Riser pipe
40 mm	1½”	Waste pipe
75 mm	3”	Drainage
100 mm	4”	Soil pipe
100 mm	4”	Main drainage

🚰 What is Plumbing Pipe Size?

Plumbing pipe size refers to the internal diameter of pipes used to transport water, wastewater, and drainage in buildings.

Correct pipe sizing ensures:

• Proper water flow
• Adequate pressure
• No leakage or noise
• Efficient plumbing system

---

📐 How to Calculate Pipe Size (Basic Formula)

Pipe size depends on:

• Flow rate (Q)
• Velocity (V)
• Pipe area

👉 Q = A × V

Where:

• Q = Flow rate
• A = Pipe area
• V = Velocity

---

🧮 Step-by-Step Pipe Size Calculation

Step 1: Calculate water demand

Based on fixtures (basin, shower, etc.)

---

Step 2: Select velocity

Typical:

• 0.6 – 2.0 m/s (domestic water supply)

---

Step 3: Calculate pipe diameter

Use flow formula or pipe chart

---

📊 Example Calculation (REAL PROJECT)

Given:

• Total fixtures = 5
• Flow demand = 0.8 L/s

Result:

👉 Required pipe size ≈ 20–25 mm

---

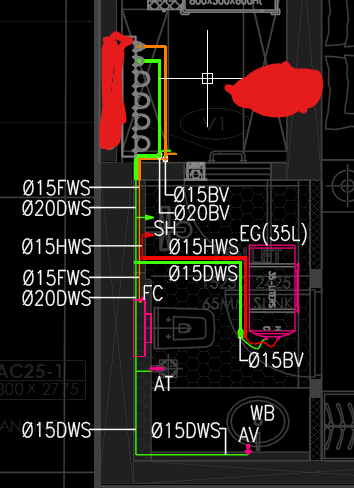

🏗 Plumbing Pipe Sizes for Different Uses

🏠 Residential

• Basin → 15 mm
• Shower → 20 mm
• Main line → 25 mm

---

🏢 Commercial

• Higher demand → larger pipes
• 25–50 mm common

---

🚽 Drainage System

• Waste → 40–50-75 mm
• Soil → 75–100 mm

---

⚠ Common Mistakes

• Using small pipe → low pressure
• Using large pipe → cost increase
• Ignoring velocity limits
• Not considering fixture units

---

💡 Design Tips (VERY IMPORTANT)

• Maintain proper slope in drainage
• Use standard pipe sizes
• Avoid sharp bends
• Follow IS plumbing standards

---

⚡ Plumbing Pipe Size Calculator

---

📥 Free Plumbing Pipe Size Excel Sheet

This Excel tool helps engineers calculate pipe sizes quickly.

Features:

• Automatic sizing
• Flow calculation
• Easy to use

---

❓ FAQ

What is standard water pipe size in mm?

15–25 mm for residential supply.

---

What pipe size is used in bathroom?

Typically 15–20 mm.

---

What is main water supply pipe size?

Usually 25 mm or higher.

---

How to calculate pipe diameter?

Using flow rate and velocity formula.

---

🎯 Conclusion

Proper plumbing pipe sizing ensures efficient water distribution, system reliability, and long-term performance. Using charts, formulas, and tools like Excel sheets helps engineers design accurate plumbing systems.
