Learn how to electrical load calculations for house using formula, example, and calculator. Includes appliance table and step-by-step guide.

1. ✅ Quick Answer

To calculate electrical load for a house:

👉 Step-by-step:

1. List all electrical appliances
2. Add total wattage
3. Convert to kW
4. Calculate current using formula

👉 Formula:

👉 I = P / (V × PF)

Where:

• I = Current (Ampere)
• P = Power (Watts)
• V = Voltage (230V)
• PF = Power Factor (0.8–0.9)

---

2. 📊 Appliance Load Chart (VERY IMPORTANT)

Appliance	Power (W)
Fan	75
LED Light	20
TV	100
Refrigerator	300
AC	1500
Washing Machine	500

3. 🧠 What is Electrical Load Calculation?

Electrical load calculation is the process of estimating total power consumption of a building.

It helps to:

• Select proper cable size
• Design electrical panel
• Avoid overload

👉 Used in:

• Houses
• Apartments
• Commercial buildings

---

4. 📐 Formula (Elcectrical Load Calculations Formula)

👉 Power (kW) = Total Watt / 1000

👉 Current Formula:

👉 I = P / (V × PF)

👉 This is the main load calculation formula

---

5. 🧮 Step-by-Step Calculation

Step 1: List appliances

• 5 Fans = 375W
• 5 Lights = 100W
• 1 AC = 1500W
• 1 Fridge = 300W

---

Step 2: Total Load

👉 Total = 2275 Watts

👉 Convert:

👉 2275 / 1000 = 2.275 kW

---

Step 3: Calculate Current

👉 I = 2275 / (230 × 0.9)

👉 I ≈ 11 Amp

---

Step 4: Select Cable

👉 Use 2.5 sqmm or 4 sqmm cable

---

6. 📊 Electrical Load Calculations Example

🏠 House Example

• Total load = 2.3 kW

👉 Required current = ~11 A

👉 Use:

✔ MCB = 16A
✔ Cable = 2.5 sqmm

---

🏢 Apartment Example

• Load = 10 kW

👉 Current:

👉 10000 / (230 × 0.9) ≈ 48 A

👉 Use:

✔ 10 sqmm cable

---

7. 🏗 Diagram / Load Distribution

Main DB panel
Circuit distribution
Load flow

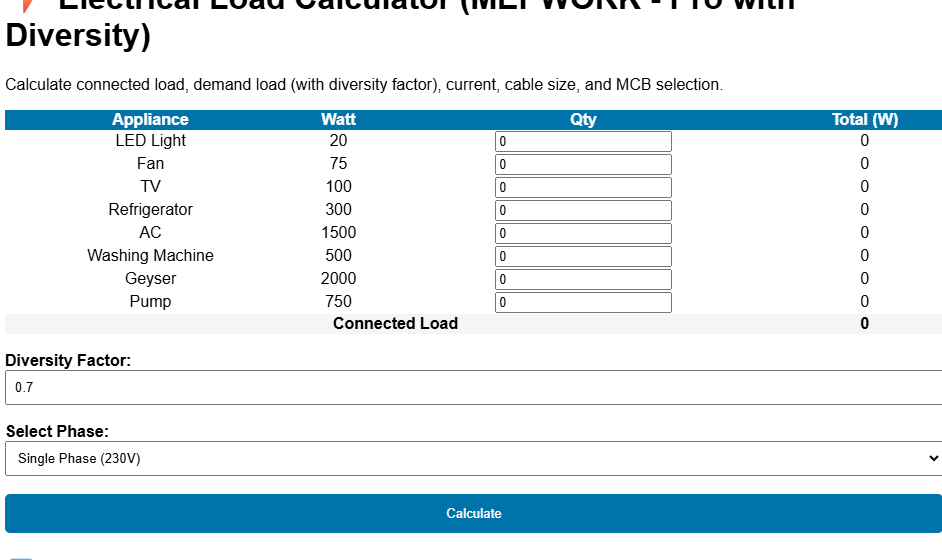

8. 📥 Download Electrical Load Calculator Excel

👉 Download Electrical Load Calculations Excel Sheet

Includes:

✔ Automatic load calculation
✔ Appliance input
✔ Current calculation
✔ Cable suggestion

👉 Perfect for engineers & students

9. ❓ FAQ

How to calculate electrical load?

👉 Add total wattage and apply formula:

👉 I = P / (V × PF)

How to estimate home electrical load?

👉 List appliances and sum total watt.

What is electrical load calculation?

👉 It is the total power consumption of a building.

What is load calculation formula?

👉 Power = Watt / 1000
👉 Current = P / (V × PF)

What is electrical load capacity calculator?

👉 A tool to calculate current based on load.

How to calculate electrical load of a house in India?

👉 Use 230V supply and 135 LPCD method for estimation.

📢 Why Download from MEPWORK?

• Free DWG files
• Ready-to-use drawings
• Designed for engineers
• Updated as per industry standards



MEPWORK.IN is developed by an MEP engineering professional with hands-on experience in building services design and execution.
The platform is created to solve real-world engineering problems and provide practical tools for faster and more accurate project work.

Download free AutoCAD DWG files for MEP engineers including plumbing, HVAC, fire alarm, and electrical systems.
All drawings are ready to use and based on industry standards.

All resources are regularly updated as per latest standards (NBC 2016, IS Codes, NFPA, and 2026 industry practices).
