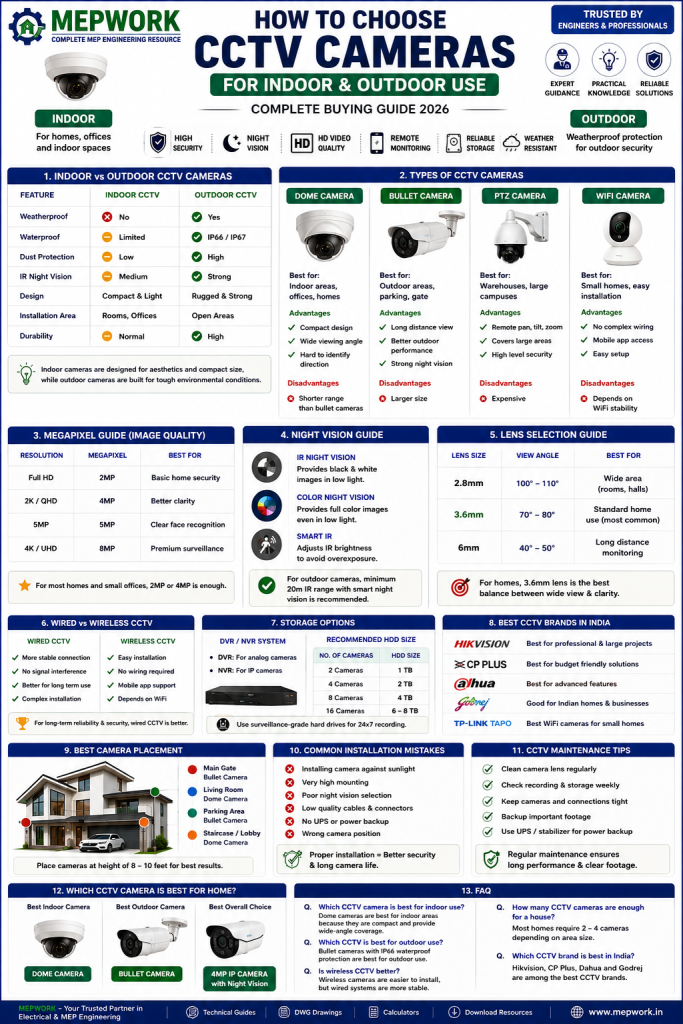

How to Choose CCTV Camera for Indoor & Outdoor Use (Complete Guide 2026)
Learn how to choose the best CCTV camera for indoor and outdoor use including dome vs bullet cameras, night vision, megapixels, storage, and installation tips.
Answers Of these Questions….
- Which CCTV camera is best for home?
- What is the difference between indoor and outdoor CCTV?
- Which CCTV camera has the best night vision?
- Dome or bullet camera — which is better?
- How many megapixels are enough for CCTV?
In this complete guide, you’ll learn how to choose the best CCTV camera for indoor and outdoor security along with camera types, night vision, storage, lens selection, installation tips, and buying recommendations.
1. Quick Answer
| Area | Recommended CCTV Type |
|---|---|
| Living Room | Dome Camera |
| Office Cabin | Dome Camera |
| Main Gate | Bullet Camera |
| Parking Area | Outdoor Bullet Camera |
| Warehouse | PTZ Camera |
| Construction Site | Weatherproof IP Camera |
👉 Indoor cameras focus on aesthetics and compact design, while outdoor cameras focus on weather protection and long-distance monitoring.
2. What is the Difference Between Indoor and Outdoor CCTV Cameras?
The biggest difference is protection against environmental conditions.
| Feature | Indoor CCTV | Outdoor CCTV |
|---|---|---|
| Weatherproof | No | Yes |
| Waterproof | Limited | IP66/IP67 |
| Dust Protection | Low | High |
| IR Night Vision | Medium | Strong |
| Design | Compact | Rugged |
| Installation Area | Rooms & offices | Open areas |
Outdoor cameras are designed to survive:
- Rain
- Dust
- Sunlight
- Heat
- Humidity
Indoor cameras are mainly designed for:
- Homes
- Shops
- Offices
- Reception areas
3. Types of CCTV Cameras
Choosing the correct camera type is extremely important.
Dome CCTV Camera
Best for:
- Indoor areas
- Offices
- Homes
- Reception areas
Advantages
✅ Compact design
✅ Wide viewing angle
✅ Difficult to identify direction
Disadvantages
❌ Shorter range compared to bullet cameras
Bullet CCTV Camera
Best for:
- Outdoor areas
- Parking
- Building entrances
- Boundary walls
Advantages
✅ Long-distance visibility
✅ Better outdoor performance
✅ Strong night vision
Disadvantages
❌ Larger size
PTZ Camera (Pan Tilt Zoom)
Best for:
- Warehouses
- Large campuses
- Industrial areas
Advantages
✅ Remote movement
✅ Zoom functionality
✅ Covers large areas
Disadvantages
❌ Expensive
Wireless WiFi CCTV Camera
Best for:
- Small homes
- Rental apartments
- Easy installation
Advantages
✅ No complex wiring
✅ Mobile app access
✅ Easy setup
Disadvantages
❌ Depends on WiFi stability
4. How Many Megapixels Are Best for CCTV?
Image quality depends on megapixels (MP).
| Resolution | Recommended Use |
|---|---|
| 2MP | Basic home security |
| 4MP | Better clarity |
| 5MP | Clear face recognition |
| 8MP (4K) | Premium surveillance |
👉 For most homes:
✅ 2MP or 4MP cameras are enough
5. Night Vision CCTV Camera Selection
Night vision is one of the most important features for security systems.
Types of Night Vision
| Type | Performance |
|---|---|
| IR Night Vision | Black & white at night |
| Color Night Vision | Full color images |
| Smart IR | Better human detection |
Best Choice
👉 Outdoor cameras should have:
- Minimum 20m IR range
- Smart night vision
- Low-light support
6. Indoor CCTV Camera Buying Guide
When choosing indoor CCTV:
✔ Compact design
✔ Wide-angle lens
✔ Audio recording
✔ Mobile viewing support
Best Indoor Camera Locations
- Living room
- Staircase
- Lobby
- Office cabin
- Store room
7. Outdoor CCTV Camera Buying Guide
Outdoor cameras need stronger protection.
Important Features
✔ IP66/IP67 waterproof rating
✔ Strong metal body
✔ Good night vision
✔ Anti-glare lens
Best Outdoor Locations
- Main gate
- Parking area
- Terrace
- Boundary wall
- Construction site
8. CCTV Lens Selection Guide
Lens size affects viewing angle and distance.
| Lens | Best For |
|---|---|
| 2.8mm | Wide area |
| 3.6mm | Standard home use |
| 6mm | Long-distance monitoring |
Recommendation
👉 For homes:
✅ 3.6mm lens is best
9. Wired vs Wireless CCTV Camera
| Feature | Wired | Wireless |
|---|---|---|
| Stability | Excellent | Depends on WiFi |
| Installation | Complex | Easy |
| Cost | Medium | Medium |
| Maintenance | Low | Medium |
Best Choice
👉 For long-term reliability:
✅ Wired CCTV is better
10. CCTV Storage Options
Security footage storage is very important.
DVR/NVR Storage
| System | Use |
|---|---|
| DVR | Analog cameras |
| NVR | IP cameras |
Recommended Hard Disk
| Cameras | HDD Size |
|---|---|
| 2 Cameras | 1TB |
| 4 Cameras | 2TB |
| 8 Cameras | 4TB |
11. Best CCTV Brands in India
| Brand | Best For |
|---|---|
| Hikvision | Professional use |
| CP Plus | Budget homes |
| Dahua | Commercial projects |
| Godrej | Indian homes |
| TP-Link Tapo | WiFi cameras |
12. CCTV Camera for Home Use
For a normal house:
Recommended Setup
| Area | Camera |
|---|---|
| Main Gate | Bullet Camera |
| Living Room | Dome Camera |
| Parking | Outdoor Bullet |
| Staircase | Dome Camera |
13. Common CCTV Installation Mistakes
Avoid these mistakes:
❌ Installing camera against sunlight
❌ Very high mounting
❌ Weak night vision selection
❌ Poor cable quality
❌ No UPS backup
14. CCTV Camera Maintenance Tips
✔ Clean lens regularly
✔ Check storage weekly
✔ Backup important footage
✔ Inspect cable condition
15. Which CCTV Camera is Best for Home?
Final Recommendation
Best Indoor Camera
✅ Dome Camera
Best Outdoor Camera
✅ Bullet Camera
Best Overall
✅ 4MP IP Camera with Night Vision
16. FAQ
Which CCTV camera is best for indoor use?
👉 Dome cameras are best for indoor areas because they are compact and provide wide-angle coverage.
Which CCTV is best for outdoor use?
👉 Bullet cameras with IP66 waterproof protection are best for outdoor use.
Is wireless CCTV better?
👉 Wireless cameras are easier to install, but wired systems are more stable.
How many CCTV cameras are enough for a house?
👉 Most homes require 2–4 cameras depending on area size.
Which CCTV brand is best in India?
👉 Hikvision, CP Plus, Dahua, and Godrej are among the best CCTV brands in India
